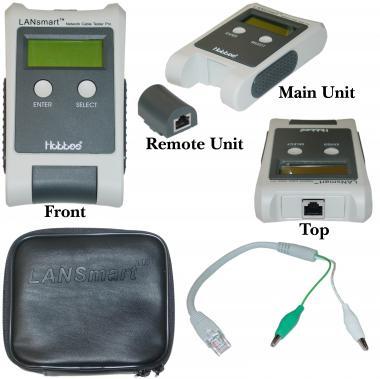

LANsmart is a hi-tech, multifunctional network cable tester. In addition to detecting basic wire connections like open, short, miss-wired and split pairs, it can also measure the cable length using TDR (Time Domain Reflectometers) technology in real time. LANsmart displays the results in pin-to-pin format. When there is any open/short fault in the cable, LANsmart will detect, locate, and display the fault. LANsmart can also send out audio signals to help find the corresponding cables; users can also send out auto negotiation signals to find out the corresponding hub/switch ports. LANSmart is compact, ergonomic, and easy to operate. Its advance functionalities and versatility make LANsmart an ALL-IN-ONE tester suitable for all professional technicians and installers.
Features
Incorporates of TDR (Time Domain Reflectometer) Technology
Tests for shorts, opens, miss-wires, reversals, split pairs, and shield continuity
Built-in PORTfinder to locate corresponding sockets on hub/switch
Measures length on UTP and STP cable without remotes
Velocity of Propagation Adjustable Calibrate ability for non-standard cables to increase measuring accuracy
Locates problems in both meter (m) and feet (ft) standards
Tone Generator sends signals to either all or selected pin conductor/s.
Test results displayed in pin-to-pin/Wiremap format
Compatible with any twisted pair of category 3/4/5 and 6 cables
Battery operated, compact and easy to use
Specifications
Display : 122 x 32 Dot Matrix LCD (56mm x 29mm) Connector Type : RJ45 (main & remote) Accuracy : 2m < than 10m ( 6.56 Feet in < than 32.81 feet) 5% > 10m (32.81 feet) Approximate test range : 1-500m (3.28 ??? 1640.42 feet) Split pair detection minimum : 1m (3.28 feet) Tone Generator : 1 KHz Operating Temperature : 0C - 50C (32F - 122F) Storage Temperature: -30C - 50C (-22F - 122F) Humidity : 10% - 90% Dimensions : 82 x 138 x 32 mm Power Source : 3 x AAA Alkaline Batteries Battery Life : 4 hours continuous use Approved by : CE
